QB boiler transport/well wagon

The VR diagram book referred to these wagons as being for loco boiler transport, in service they were simply a heavy duty flat wagon capable of carrying unusual loads. In the 70's I saw them carrying very large rolls of cable in drums, these drums were too high to be carried on regular flat wagons but the depressed centre of the QB meant that the load stayed within the loading gauge.

There were 13 wagons in the class, numbered 1 -13. They were built between 1902 and 1925. In the 1979 re-coding they became VWAA.

Steam Era Models make an superb HO brass kit of this wagon class

ABOVE: QB 1, in as built condition, circa 1905. (PROV collection)





ABOVE: QB 1, Melbourne yard, circa 1924. (PROV collection)

ABOVE & BELOW: QB 1, unloading a Harman crane circa 1937. (PROV photos)



ABOVE: QB 1 at Nth Geelong, mid 1970s, (photo courtesy David Hewitt)

ABOVE: QB 2 hauling stationary boilers at Yallourn. Oct 1921 (photo courtesy State Library Victoria)

ABOVE: QB 2 at Albury, April 1979 Photo courtesy Rob O'Regan

ABOVE: QB 2 at Nth Geelong with roller bearing bogies and container brackets. June 27 1978. (photo courtesy Geoff Winkler)

ABOVE: QB 3 circa 1936. (PROV collection)

ABOVE & BELOW: QB 3 circa 1937 (PROV photo)

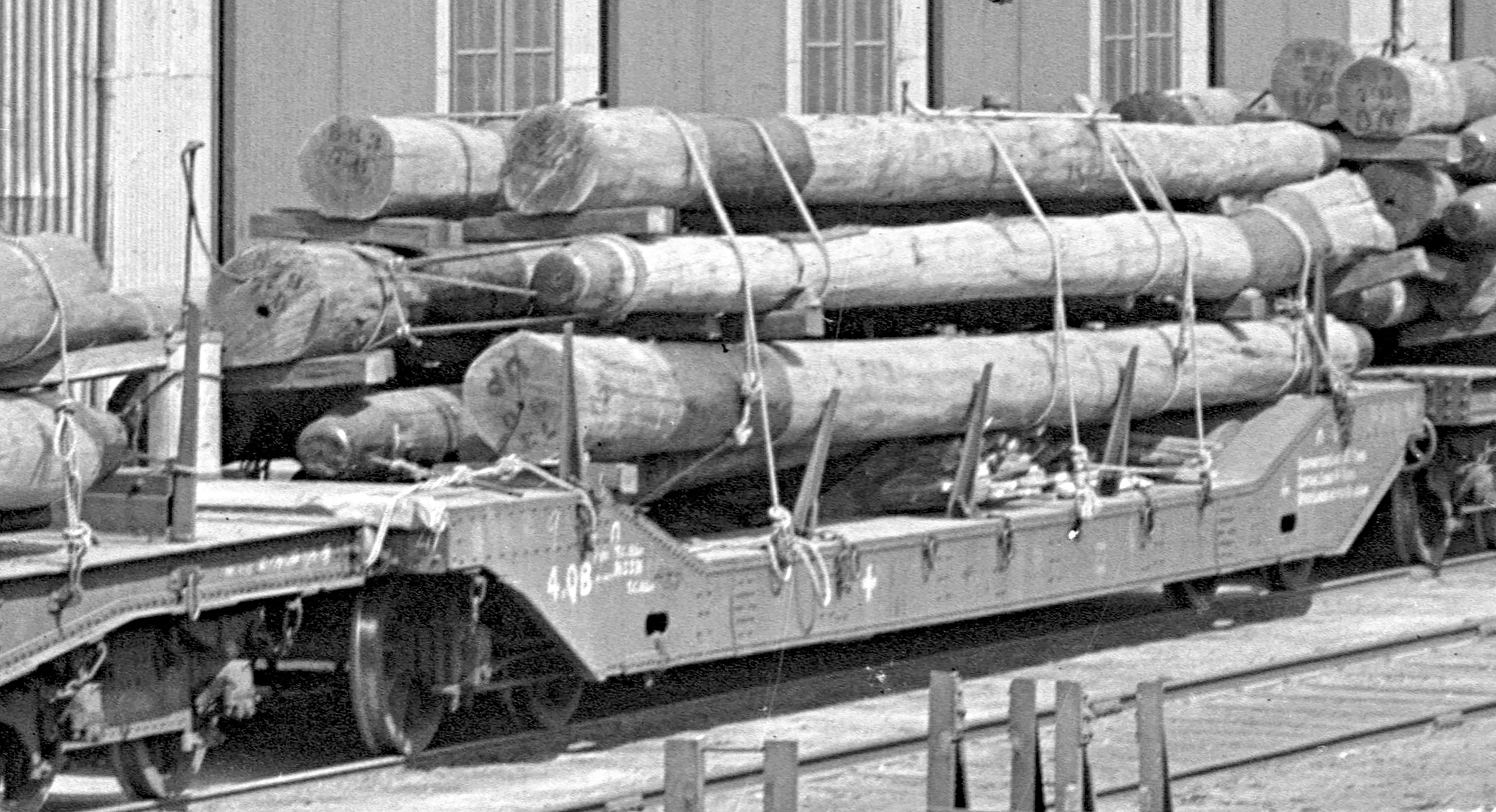

ABOVE: QB 4 loaded with poles for the electrification project, possibly the Hurstbridge line at Arden St. circa 1925

ABOVE: QB 4 circa 1945.

ABOVE: QB 6 at Melb goods yard, circa 1927

ABOVE: QB 6 circa 1939. (PROV collection)

ABOVE: QB 7 at Spotswood circa 1957

ABOVE: QB 7 at Newmarket 1978

ABOVE: QB 8 loaded with a damaged BC 12, Oct. 10 1933. BC 12 had been the rear vehicle on a down Serviceton goods which was rear ended whilst waiting at the Sunshine arrival home signal by the 8.10pm down Seymour goods.

ABOVE: QB 9 at Morwell, Oct 1976 Photo courtesy Rob O'Regan



ABOVE: QB 10, Melbourne yard  circa 1952.

ABOVE: QB 10 at Nth Melb workshops 1979

ABOVE: Three QBs loaded with very large boilers circa 1929. photo courtesy PROV

ABOVE: QB 10 still in service for a private operator and now classed ZWAY at Bunyip March 2004 Photo courtesy Geoff Baxter

ABOVE: QB 11 Melbourne Yard, circa 1957.

ABOVE & BELOW: QB 12, was a different design to the rest of the class. ABOVE: Nth Dynon Sep 1975, BELOW: at Nth Geelong Dec 5 1975 (photos coutesy David Hewitt)



ABOVE & BELOW: QB 12, was a different design to the rest of the class



ABOVE: QB 12 circa 1936

ABOVE: QB 13 at Spencer during the 1954 Centenary exhibition. QB 13 was re-coded to QWF 1 in 1961.

ABOVE: 2 QB's carrying a part for a gantry crane in the electric crane area of Melb yard. July 10 1972 Official VR photo PR6421



ABOVE: QB 2 loaded with the remains of one of the S class diesels involved in the Southern Aurora smash, Feb. 1969. Note the diamond frame bogies Official VR photograph
